Introduction

Energy management is a pressing global concern, and I aimed to address this challenge with a personalized solution. I designed and developed a Power and Energy Monitoring Device that offers real-time insights into energy consumption. By leveraging the functionality of the PZEM-004T module and an OLED display, I created a device that is user-friendly, compact, and reliable, empowering individuals and small businesses to make informed energy decisions.

System Overview

Aim and Objectives

Aim:
Create a compact, cost-effective, and accurate energy monitoring device for real-time power and energy management.

Objectives:
The objectives of the project are outlined below:

• Measure real-time electrical parameters such as voltage, current, power, frequency, power factor, and energy consumption.
• Display real-time data on a 0.96” OLED screen for easy readability.
• Provide a portable and durable solution for residential and small-scale applications.
• Validate system performance under varying load conditions.

Features & Deliverables

• Real-Time Monitoring: Displays voltage, current, power, frequency, power factor, and energy usage in real-time.
• User-Friendly Display: OLED screen ensures clear visibility of all parameters.
• Compact and Portable: Enclosed in a single pattress box casing for durability and portability.
• Cost-Effective: Designed with readily available and affordable components.
• Plug-and-Play: Simple setup with minimal wiring for quick deployment.

Process / Methodology

Hardware Assembly

Components: Arduino Nano, PZEM-004T, OLED 0.96”, 5V power supply, Jumper cables, Connecting wires, Cable ties, Veroboard, and single pattress box casing and its cover.

• Mounted components on a veroboard for stability and integrated into the pattress box casing.
• Secured components with cable ties and arranged wiring neatly.

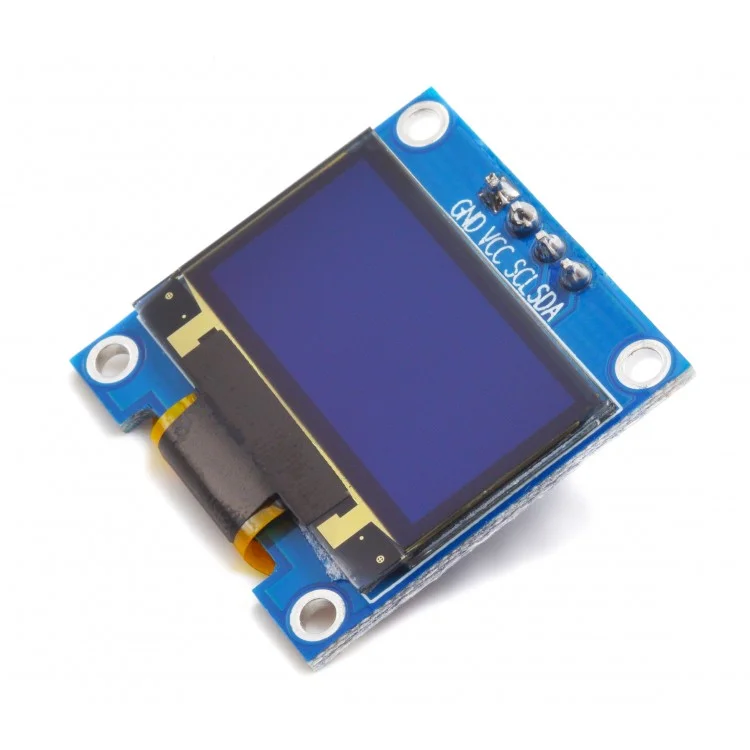

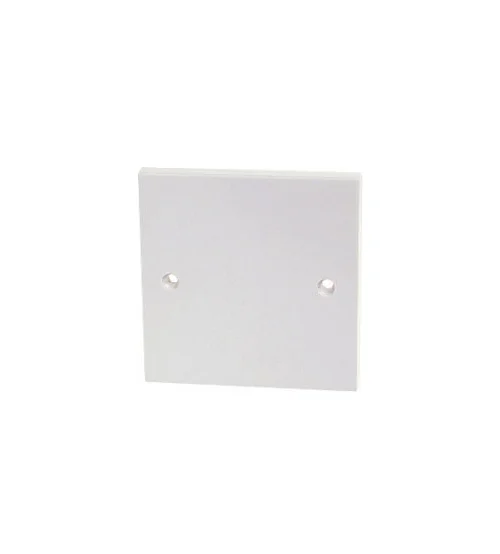

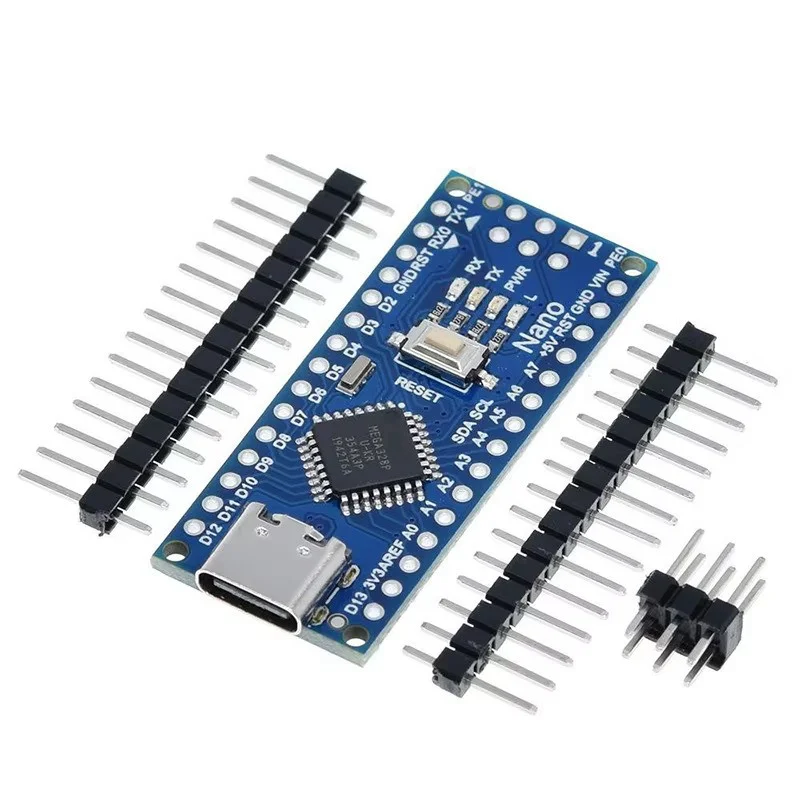

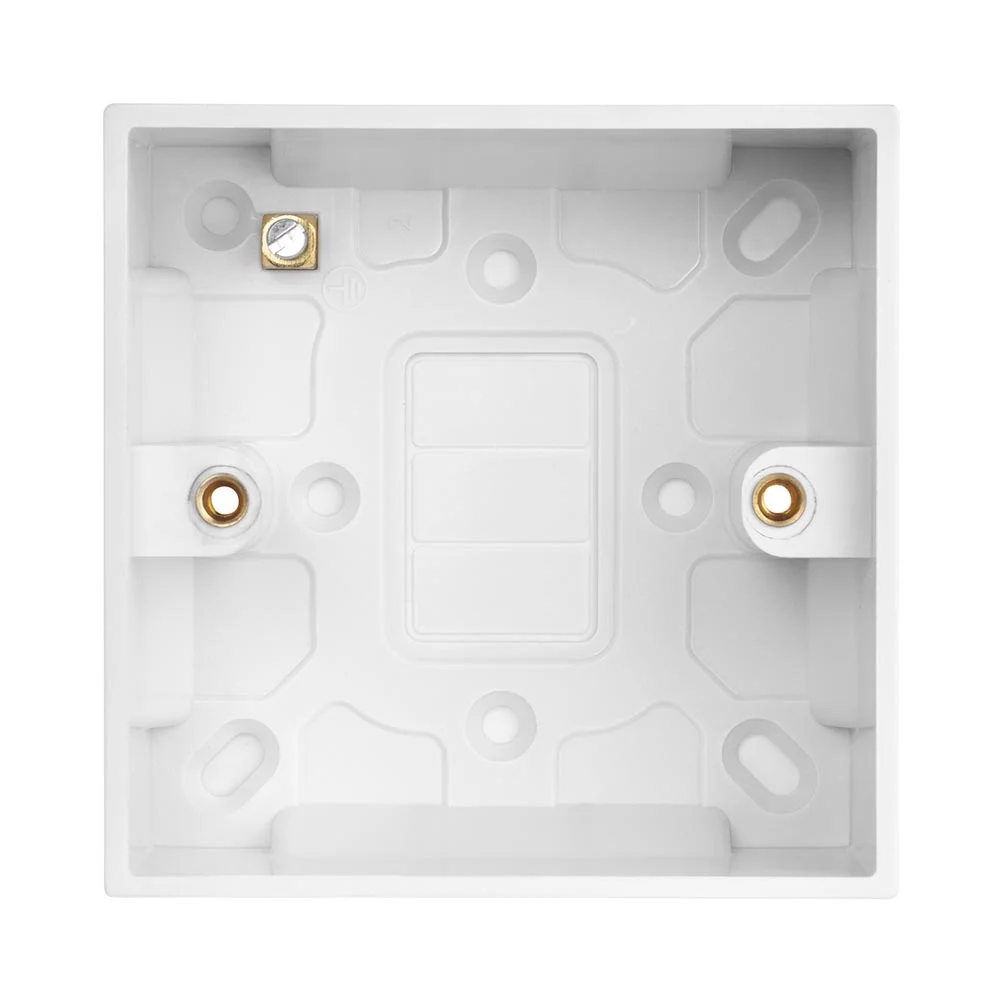

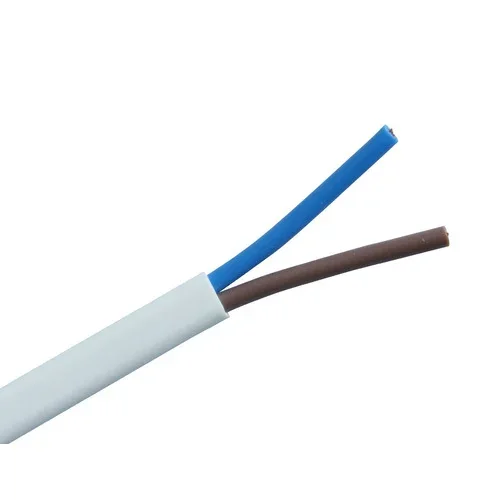

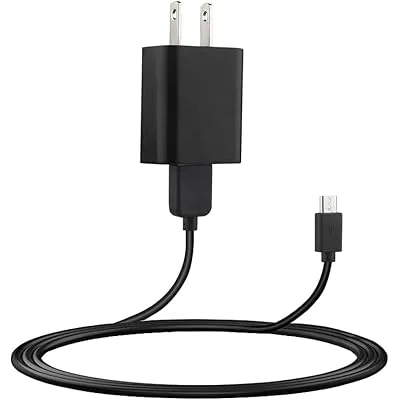

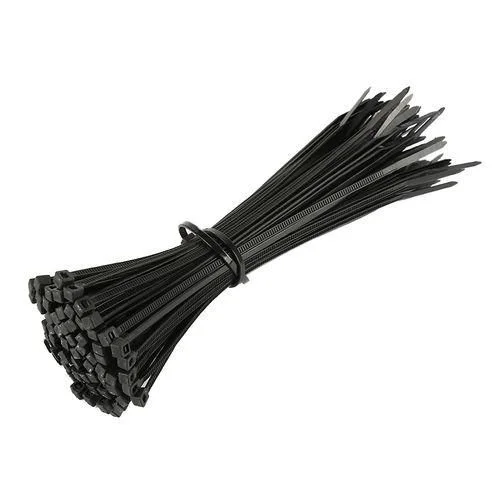

Arduino Nano PZEM-004T OLED 0.96” 5V power supply Jumper cables Connecting wires Cable ties Veroboard Pattress Pattress cover

Hardware Assembly

Software Development

• Developed code in Arduino IDE for real-time data acquisition from PZEM-004T and display on OLED.
• Implemented libraries to control the OLED display using I2C communication (SDA - Serial Data, SCL - Serial Clock) and to interface with the PZEM module via UART communication (TX - Transmitting, RX - Receiving).
• Utilised Fritzing Software for the design of the Circuit Diagram.

Testing & Calibration

• Connected to varying loads to measure voltage, current, and power.
• Validated accuracy by comparing readings with a standard multimeter.

Casing and Finishing

• Fitted the assembled system into a single pattress box for safety and aesthetics.

Challenges & Solutions

• Challenge: Ensuring accurate communication between the PZEM-004T and Arduino Nano.
  Solution: Calibrated UART settings and verified data transmission protocols.
• Challenge: Power supply stabilization for continuous operation.
  Solution: Used a regulated and a reliable 5V power supply to maintain consistent power delivery (A phone charger will do just fine, too).
• Challenge: Compact assembly within the pattress box.
  Solution: Optimized component layout on the veroboard and used cable ties for neat wiring.

Results & Impact

• Accuracy: Achieved a 99.8% correlation with standard energy measurement tools.
• Visibility: OLED display provided clear and concise real-time data, even in low-light conditions.
• Portability: Compact design allowed for easy relocation and setup.
• Energy Awareness: Empowered users to monitor and manage energy consumption effectively.

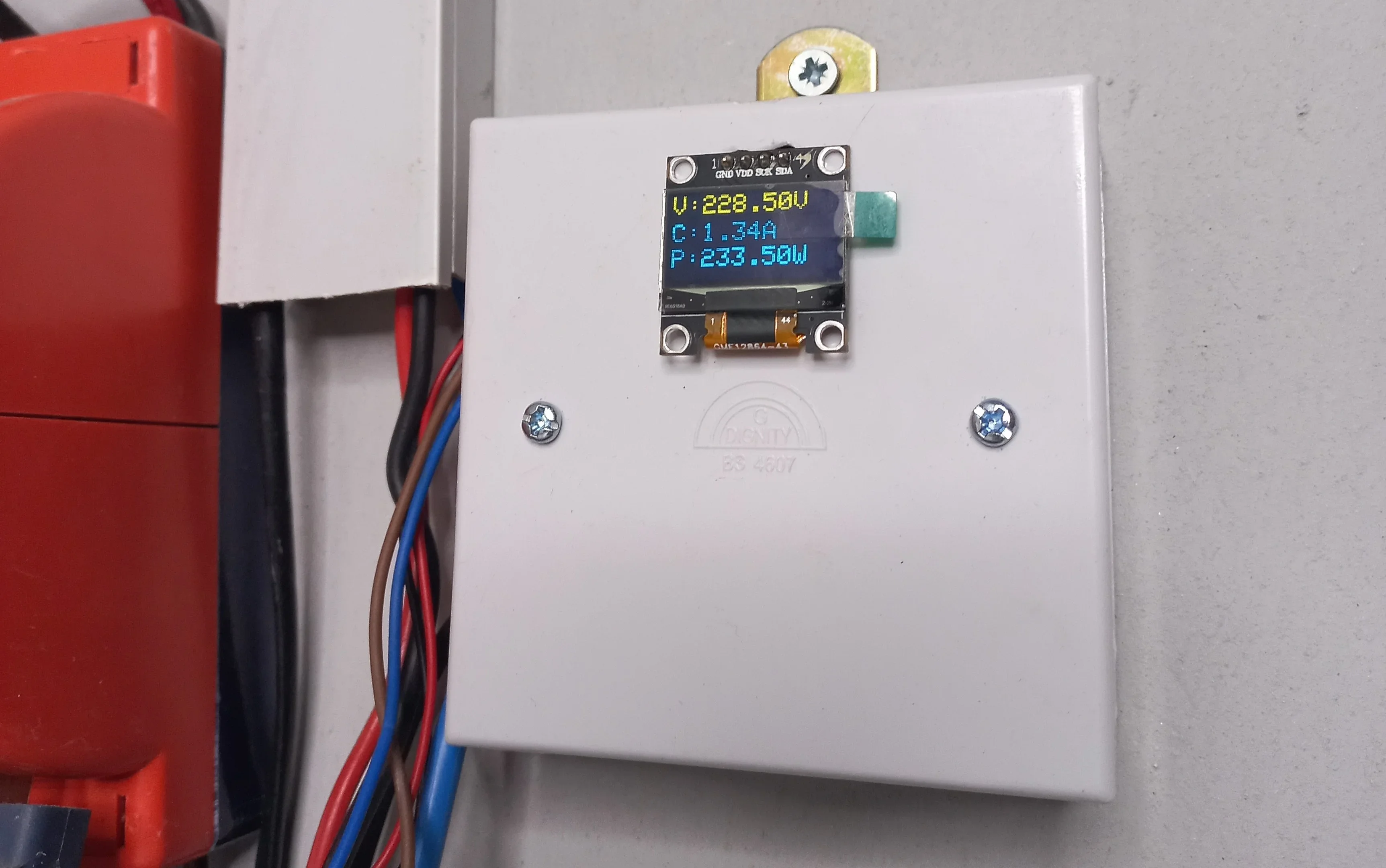

Results - Voltage, Current, & Power

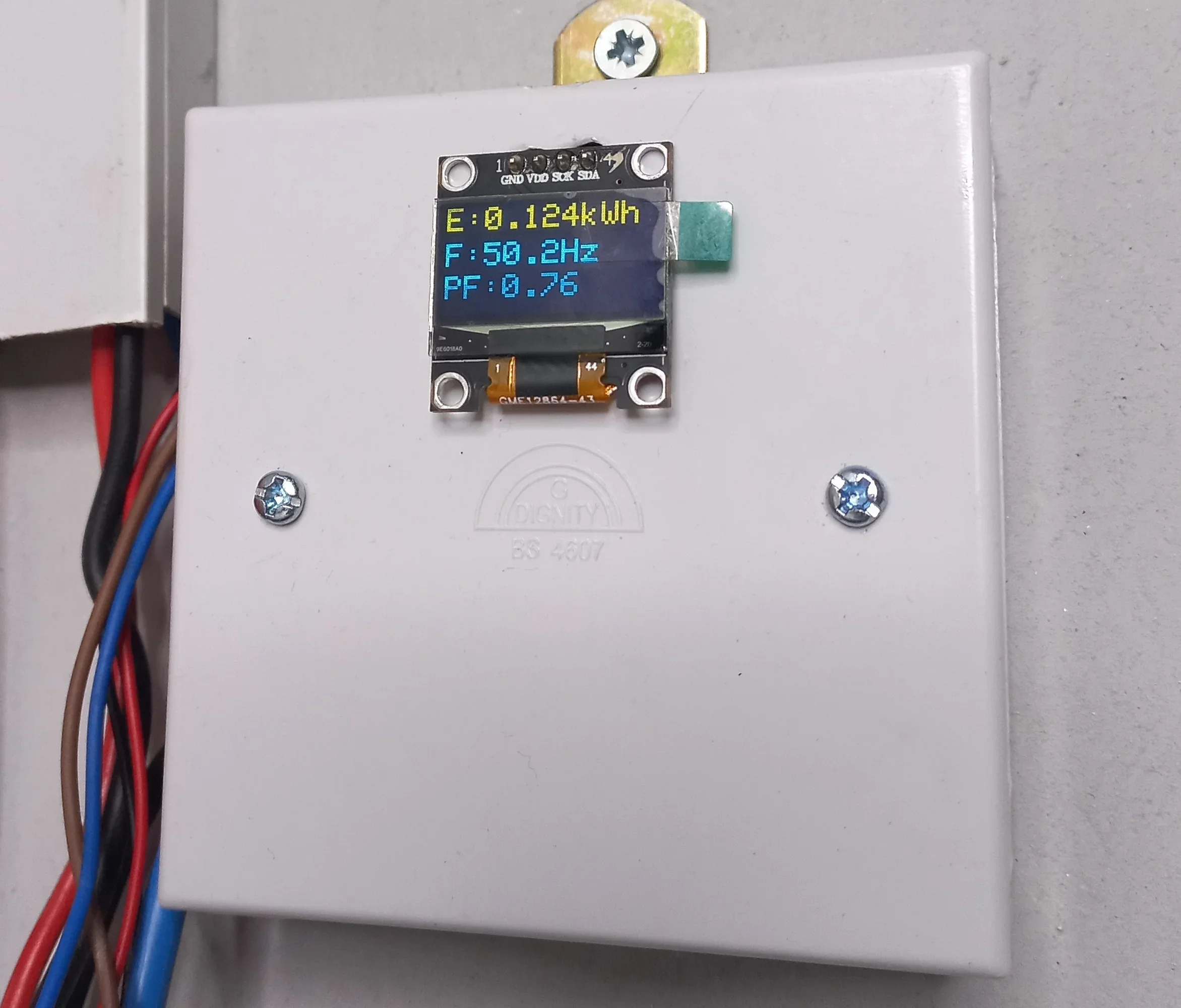

Results - Energy, Frequency, & Power Factor

Future Enhancements

• Add Wi-Fi or Bluetooth connectivity for remote monitoring.
• Expand to three-phase energy monitoring for industrial applications.
• Integrate data logging capabilities for historical analysis of energy usage.
• Include mobile app integration for advanced user interaction.

Demonstation / Access

• GitHub Repository (for code & others): Click here!
• Live Demonstation Video: Watch here!

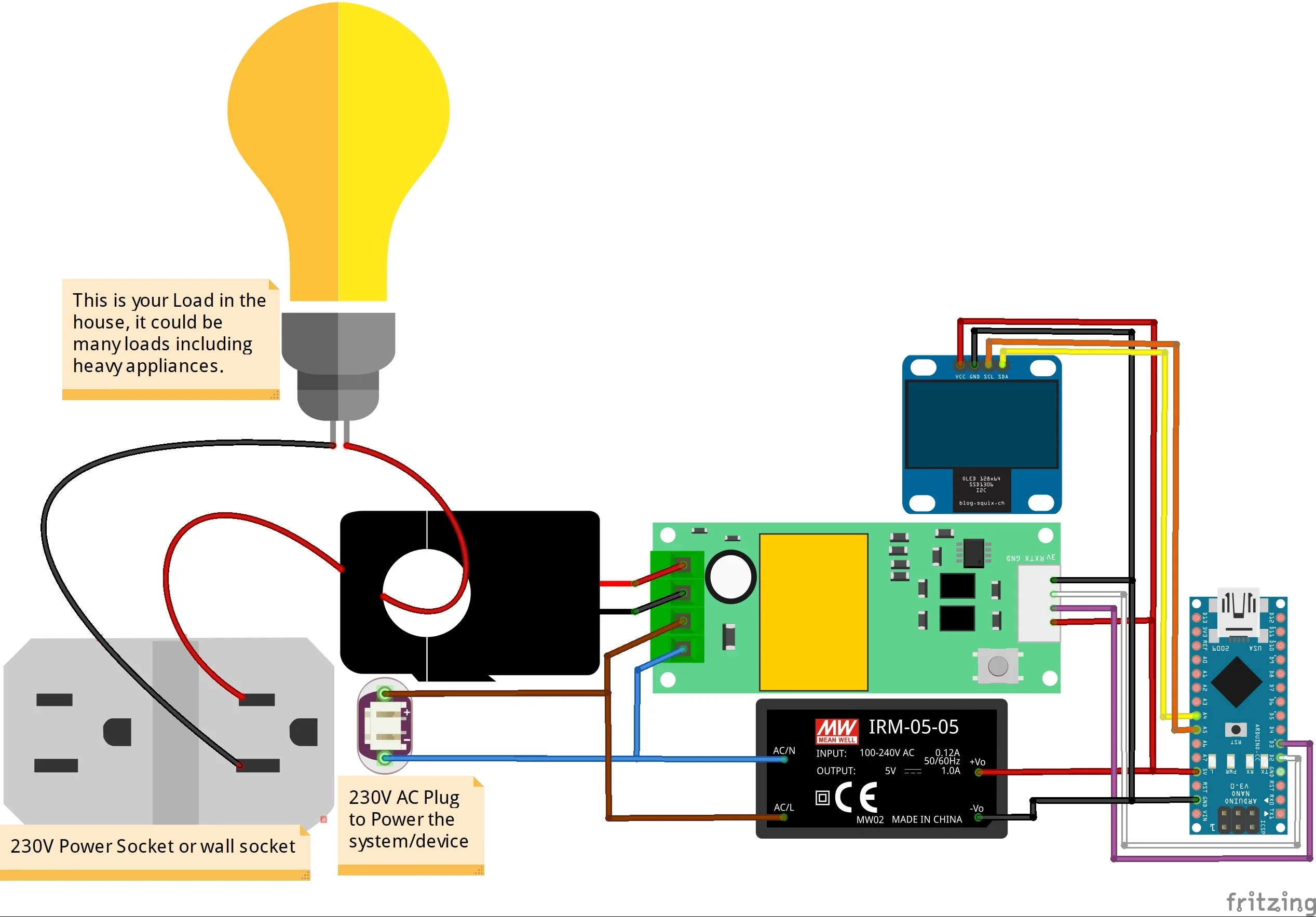

Circuit Diagram

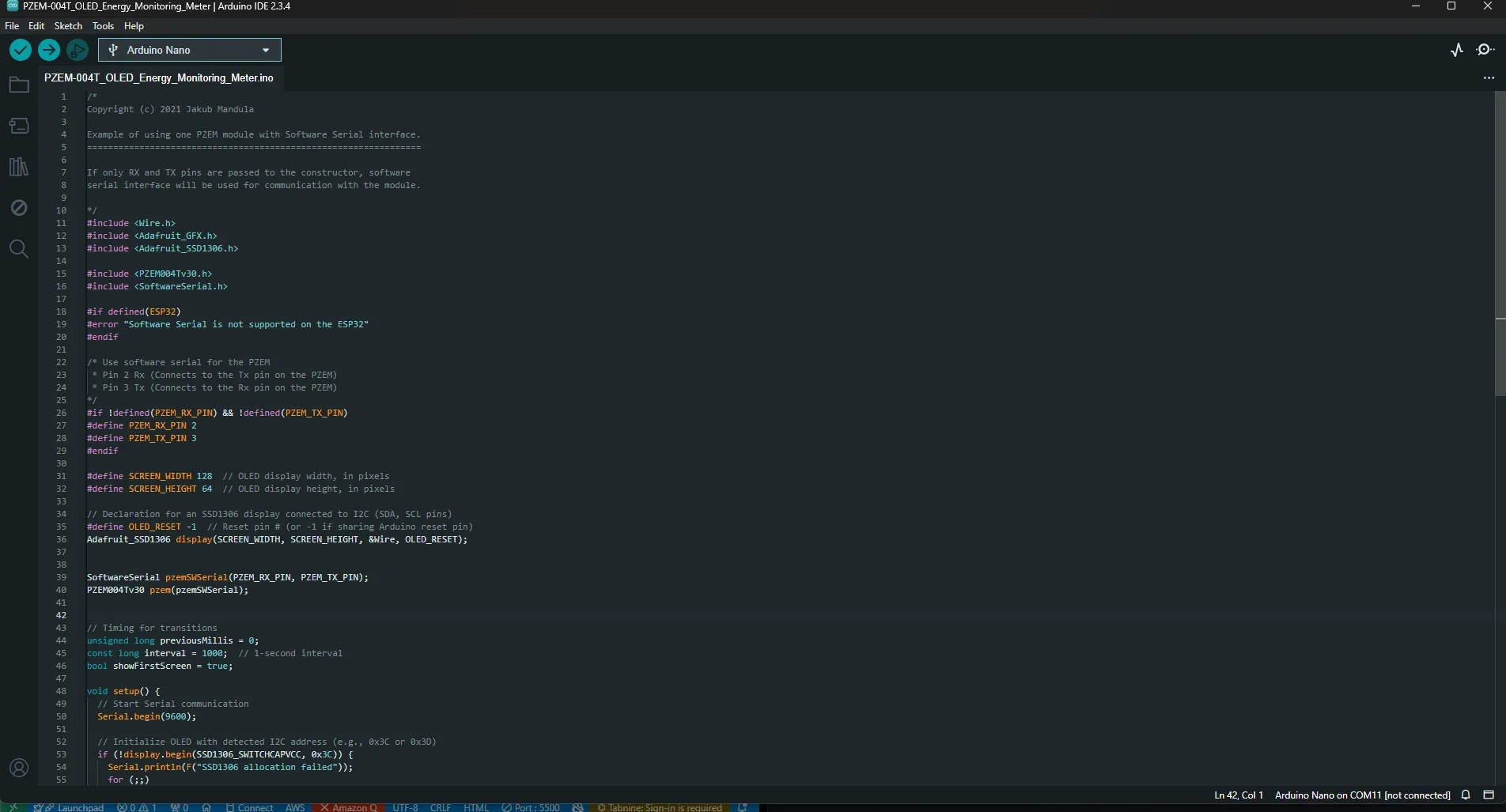

Code Snippet
